The editor

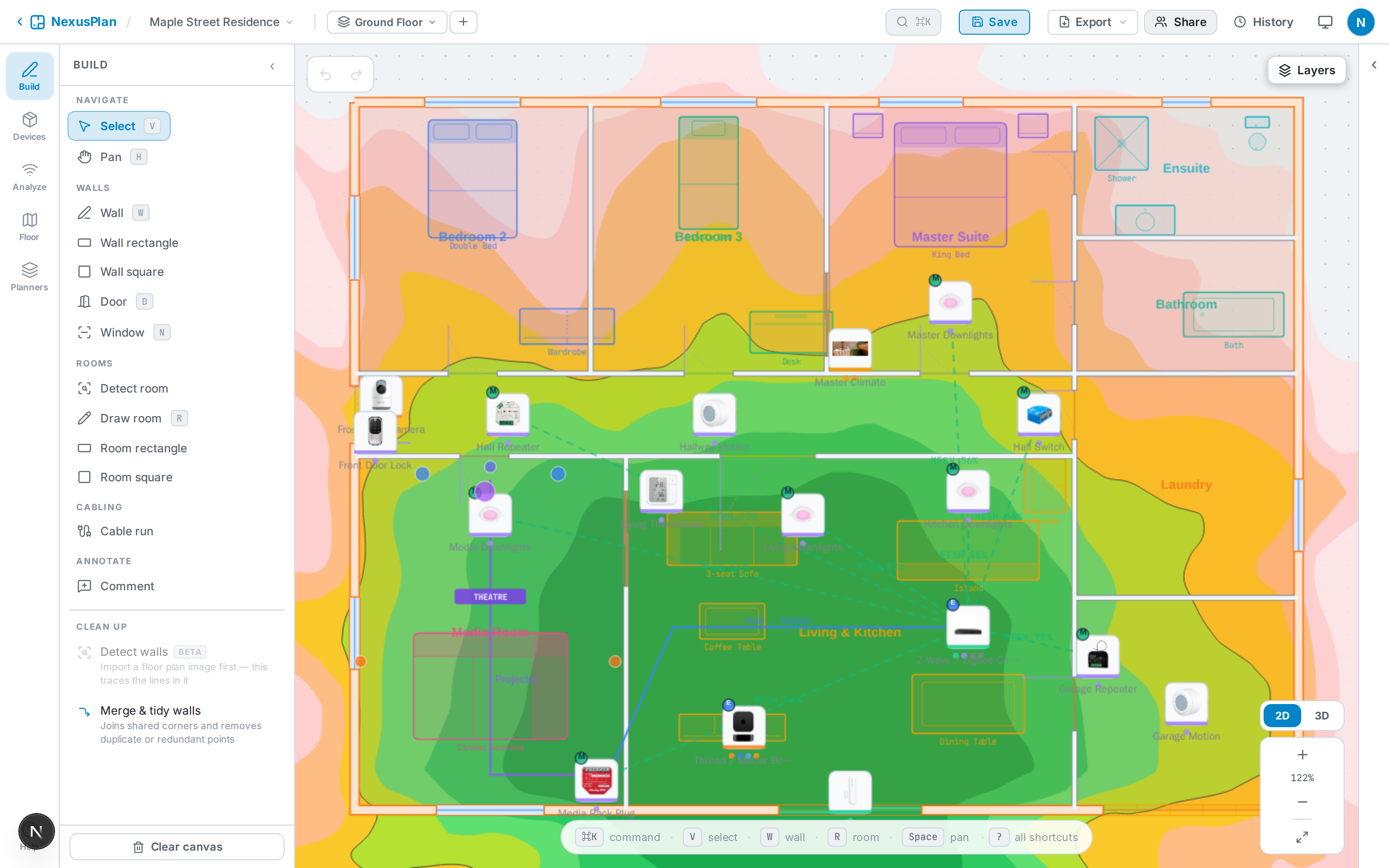

The editor is where you draw, place, and simulate. Here’s the layout:
The canvas
Section titled “The canvas”The large central area is your floor plan. Drag to pan, scroll (or pinch) to zoom. The controls at the top-left switch between Select and Pan, with Undo/Redo beside them.

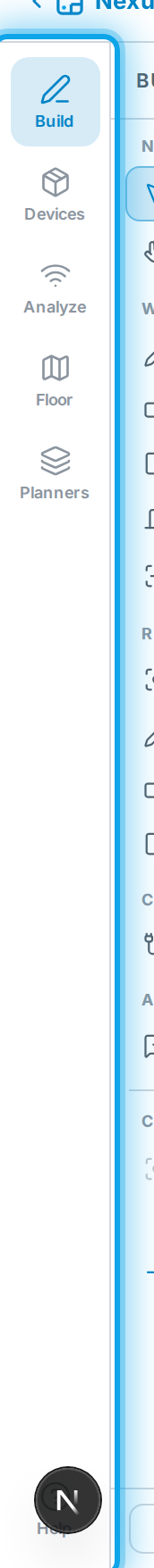

The left rail
Section titled “The left rail”Tools and content are grouped on the left:
- Build — walls, doors, windows, rooms, scale.
- Devices — the device library to drag onto the plan.
- Analyze — coverage and diagnostics.
- Floor — floor plan image, adjust, align.
- Planners — Network, Home Theatre, Acoustics, Room and Plan Health.

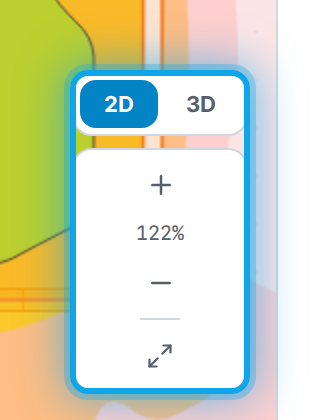

View controls
Section titled “View controls”Bottom-right you’ll find zoom, fit-to-screen, and the 2D / 3D toggle. The 3D view opens a live model of your space (see 3D & walkthrough).

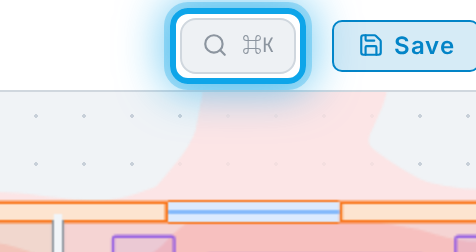

Command palette
Section titled “Command palette”Press ⌘K (or Ctrl+K) to search every tool, panel, floor, and action by name — the fastest way to get anywhere.
Settings
Section titled “Settings”Open Settings from the profile menu to switch theme (light/dark), density (comfortable/compact), rendering quality, and to hide the keyboard hint bar.
